MIKROPOR® G / GT / G Patina

Non-directional structured colour surface
(> 90% light reflectance)
non-directional structured colour surface
(deep frequency absorber)
non-directional structured colour surface
(deep frequency absorber)

Wilhelmi acoustic panels from Lahnau Akustik GmbH are made from recycled glass granulate and bound with inorganic binder. The surface consists of a silicate based acoustic membrane and is sprayed with Wilhelmi acoustic silicate paint. The structure of the visible side is closed, non-directional and fine pored. The max. format of the stable, 18 mm thick panel core is 2500 x 1250 mm, which is easily manually processed.

Inquire now



Advantages

  • Acoustics, fire protection and ecology combined to a universal panel material
  • Easy to process with customary carpenter's tools
  • Suitable for applications with special requirements

Base panel:
Expanded recycled glass granulate, bound with inorganic binder

Surface:
Acoustic membrane with matt, smooth and non-directional surface, optionally available as sound absorbing (G) or sound reflecting (GT)

Surface colour (visible side):
In special colours as per sample on request; optional antistatic, water-repellent special coating

MIKROPOR® G
Non-directional, fine-pore structured colour coating light reflectance value (white) > 90% (diffuse: 0.9)

MIKROPOR® GT
This version as Mikropor G but sound reflecting.

MIKROPOR® G PATINA
Non-directional, matt, smooth coloured surface coating

Care / refurbishing:
It is possible to clean localized soiling using a damp synthetic sponge or brush. Clean with a vacuum cleaner and brush. Refurbishable by spraying with Wilhelmi acoustic paint (WAF-R), without any loss of sound absorption properties.

Rear:
Acoustic membrane as on visible side

Building material class:
A2 (s1, d0) (non-flammable)

Edge configurations:
Untreated, grooved or rebated, edge covered with fleece in the same colour tone as the surface

Panel thickness:
Approx. 18 mm

Standard lengths:
2500 mm
1875 mm
1250 mm
625 mm

Standard widths:
1250 mm
625 mm
415 mm
Formats as requested (cut from standard formats)

Weight per unit area:
Approx. 7.5-8.5 kg/m2

Humidity:
Permanent high levels of humidity (> 70%) affect the dimensional stability of the panels.

Sound absorption level:
See measuring curve in the chapter Acoustic test certificates

Surface:
Acoustic membrane with matt, smooth and non-directional surface, optionally available as sound absorbing (G) or sound reflecting (GT)

Surface colour (visible side):
In special colours as per sample on request; optional antistatic, water-repellent special coating

MIKROPOR® G
Non-directional, fine-pore structured colour coating light reflectance value (white) > 90% (diffuse: 0.9)

MIKROPOR® GT
This version as Mikropor G but sound reflecting.

MIKROPOR® G PATINA
Non-directional, matt, smooth coloured surface coating

(the colour and structure shown in images of surfaces can differ slightly from the original)

* Special colour

We would be more than happy to send you a sample.
Feel free to contact us.

We develop effective acoustic building materials in close cooperation with scientists, clients, architects and contractors. Utilizing these high-quality materials facilitates optimum speech intelligibility in our built-up environment.

At the same time, the design options available with regard to material, surface, colour and shape are so varied that it is possible to efficiently combine the demands placed on man and an eco-friendly architecture with one another on the basis of the latest scientific findings.

A variety of acoustics tests are available to download from the Downloadarchiv.

Overview of our standard grooves:
The wide variety of possible constructions makes it necessary to offer a broad portfolio of groove variants.

Acoustic panels from Lahnau Akustik GmbH are suitable for both T-profile substructures as well as for numerous substructures developed by us.
The PDF document contains an overview of the available variants.

Different grooves are possible on request.

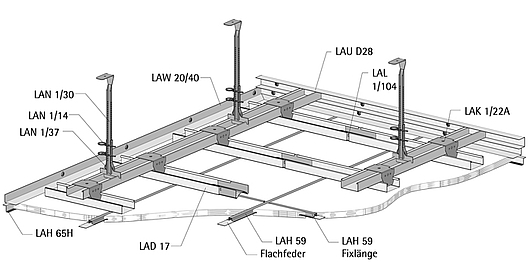

Installation system with hat channels
  • The ceiling system designed to meet the highest requirements vis-à-vis stability; also suitable for large sized acoustic panels
  • Panel lengths up to 2500 mm panel widths up to 625 mm; wider panel widths with added reinforcement on request
  • Ceiling void remains accessible; all acoustic panels can be removed and reinstalled using tools; no need to push up into the void to remove

Lay-on / lay-in system with visible T-profile
  • The ceiling system for a variety of grid dimensions; easy access to ceiling void
  • Panel lengths up to 2500 mm, panel widths up to 625 mm with a T-profile width of 15 mm or 24 mm
  • Square formats up to 1250 x 1250 mm can be installed without added reinforcement. Possible to remove and reinstall without tools

Lay-in system with concealed construction K292
  • The ceiling system for a variety of grid dimensions with narrow joint, easy access to ceiling void.
  • Panel lengths up to 2500 mm, panel widths up to 625 mm.
  • Possible to remove and reinstall without tools

Lay-in system with DP03 D
  • The ceiling system that facilitates easy access to the ceiling void.
  • Equally suitable as room and corridor ceilings
  • Panel lengths up to 2500 mm, panel widths up to 625 mm
  • Remove and reinstall with low lifting space

Lay-in system with LAP 1005
  • The ceiling system that facilitates easy access to the ceiling void.
  • Equally suitable for room and corridor ceilings, panel lengths up to 2500 mm, panel widths up to 625 mm
  • Remove and reinstall with low lifting space

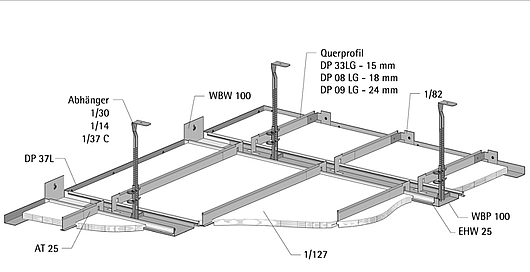

Visible C-channel (Bandraster) grid system parallel or crosswise
  • The ceiling system to flexibly configure room layouts; particularly suitable for offices and administration buildings, schools and institute buildings. Equally suitable when refurbishing properties.
  • Panel lengths up to 2500 mm, panel widths up to 625 mm. Larger panel formats with added reinforcement on request.
  • For square panel sizes up to 1250 x 1250 mm without added reinforcement.
  • Remove and reinstall without tools.

1. Cleaning

  • Before cleaning with a damp cloth, carefully remove surface dust with a brush or vacuum cleaner.
  • It is possible to remove localized soiling such as fingerprints or trails of soiling close to air outlets using a firm, damp sponge together with a commercially available household cleaner or Moisture-Clean (available as a powder from Lahnau Akustik) in the respective recommended concentrations.
  • Then carefully wash down the cleaned surface with clean, clear water and dab dry with an absorbent cloth or paper (kitchen roll).
  • We recommended you test clean an inconspicuous area each time before cleaning.

Professional refurbishment must be carried out using Wilhelmi acoustic paint WAF-R 86 (special colours WAF-R 87).

  • Quantity used during refurbishment: 400-700 g/m² depending on the degree of soiling
  • Ensure the room temperature does not fall below 12 °C when applying the coating; the relative humidity should not exceed 70%.
  • Once applied immediately ensure the rooms are ventilated and dehumidified.

2.1 Refurbishment

If the acoustic ceiling has become heavily soiled after many years of normal use and can no longer be cleaned properly, it is possible to restore it to a condition virtually as good as new by applying a refurbishment spray.

When applied professionally in accordance with the manufacturer’s instructions the acoustic absorbency of the wall or ceiling surface is not impaired. The refurbishment can be repeated several times, if required.

Under no circumstances should emulsion paints be applied to the surfaces using a brush or roller, otherwise the sound absorbing properties will be lost.

It is only possible to guarantee the acoustic characteristics will be retained by engaging a professional company that uses the appropriate coating machinery to professionally apply the refurbishment spray, e.g.,

Strobl Beschichtungstechnik GmbH
Hermann-Volz-Straße 50
D-88400 Biberach/Riß

Tel. +49 7351/4400-0
Fax +49 7351/4400-60

  • Schools & kindergartens
  • Theatres & concert halls
  • Indoor shooting ranges
  • Wall cladding
  • Sports halls
  • Banks & insurance offices
  • Private properties
  • Bars and restaurants
  • Hospitals
  • Office & administration
  • Indoor swimming pools



Quality management

It is possible to achieve continual improvement with the aid of quality management by involving all members of staff and optimizing company procedures across all departments. Fulfilling customer requirements is central to all we do. An integrated management system for quality, environment and occupational health and safety according to EcoStep.


Environment management

As a manufacturer of environmentally friendly products based on the raw materials glass and metal Lahnau Akustik GmbH is passionately committed to protecting the environment. We wish to contribute towards balancing economy and ecology with the aim of combining sustainable development with the careful use of resources.


The ecological benefits of acoustic panels made of recycled glass:

  • 100% recycled glass
  • Sustainable
  • Conserve natural resources
  • Winner of many ecological awards
  • Optimize your LEED rating
  • Healthy home environment “built-in”
  • Reduce CO2
  • Optimize heat insulation
With you in mind, we have introduced:


An integrated management system for quality, environment and occupational health and safety. An expert assessment documented in a report verifies that the management system fulfils

requirements and, as a consequence, the core stipulations of the following standards:
ISO 9001:2000
ISO 14001:2004
ILO guidelines on occupational
safety and health (2001)
